Ankle and distal tibia ORIF: an OR 101 guide
Reviewed by Rodnie Oro, cath lab charge nurse · Last reviewed: October 2026 · Education only, not medical advice
Ankle ORIF in one minute
What it is: surgery to put broken ankle or lower shin bones back in line (open reduction) and hold them with plates and screws (internal fixation).
Who it is for: people with an unstable or displaced ankle or distal tibia fracture.
Main risks: wound problems, infection, stiffness, nerve irritation, arthritis later, metalwork needing removal.
Usually: under general or spinal anaesthetic, 1–2 hours, home in 1–3 days.
On this page: What is ankle and distal tibia ORIF? · Who is it for? · When is it done? · Step by step · Recovery · Risks · Kit list · First time in theatre? · FAQ

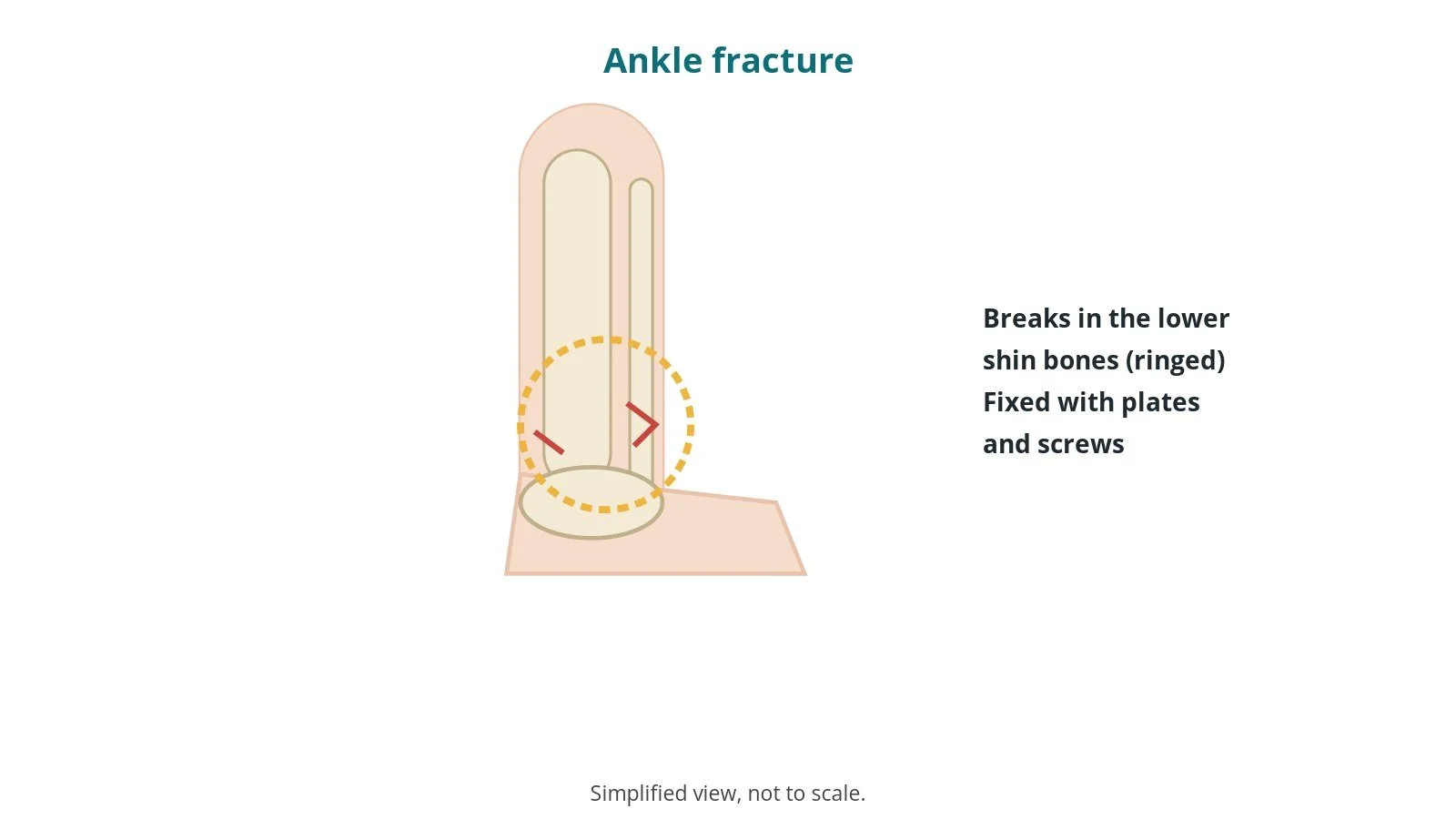

What is ankle and distal tibia ORIF?
ORIF stands for open reduction and internal fixation. The ankle joint is formed by the lower ends of the shin bone (tibia) and the thinner fibula, sitting on the talus.
In ankle ORIF the surgeon:
- opens over the broken bones and lines them up accurately
- fixes them with plates and screws, sizes per device and operator
- checks the joint and its ligaments with X-ray
Swelling often needs to settle first, so surgery may be delayed; severe fractures may first have an external fixator. Fractures of the lower tibia (pilon fractures) are more complex.
New to the acronyms? See the Cath Lab Abbreviations A–Z.
Who is it for?
It may be considered for people with:
- an unstable or displaced ankle fracture
- a fracture involving the joint surface
- a lower tibia (pilon) fracture
The decision is made by your surgical team, who will talk through the reasons, the alternatives and the risks with you.

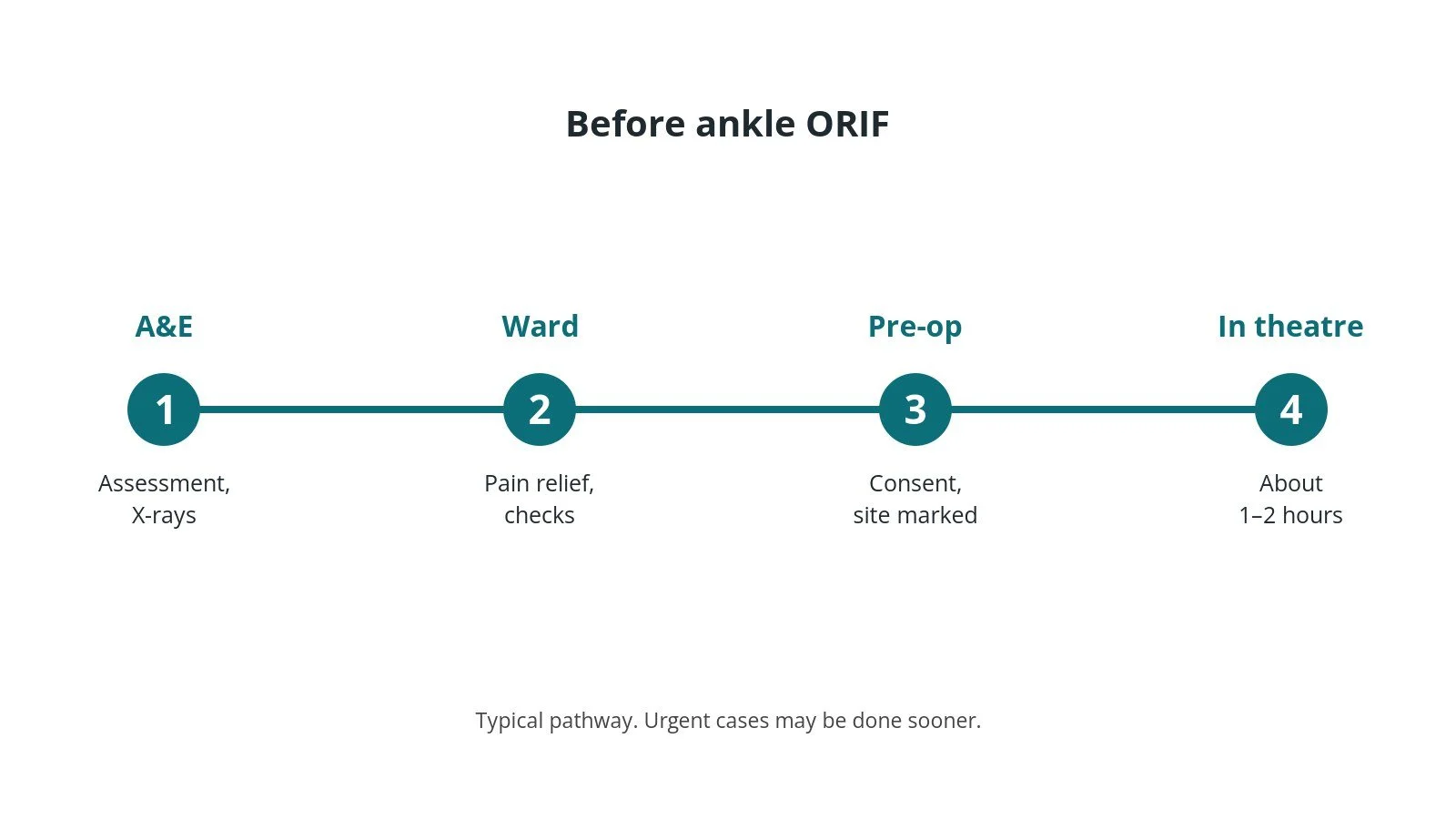

When is it done?
It may be urgent or delayed until swelling settles. Before it, you usually have:
- an examination and X-rays, sometimes a CT scan
- a backslab or splint and leg elevation
- blood tests as needed
- a review of your medicines, as per centre protocol
- a chance to ask questions and give consent
Step by step
1. Getting ready
Team brief and WHO checklist first, including the implant check and confirming the site and side marking. The anaesthetic team and ODP give the anaesthetic (general or spinal, sometimes with a nerve block, as per centre protocol); antibiotics and blood-clot prevention are given as per centre protocol. The circulating practitioner checks positioning and pressure areas, the diathermy plate, warming, the tourniquet, and radiation protection if X-ray is used. The scrub practitioner checks implant and instrument trays are complete and sterile, and does the first count. Theatre traffic is kept to a minimum, especially in laminar-flow theatres.

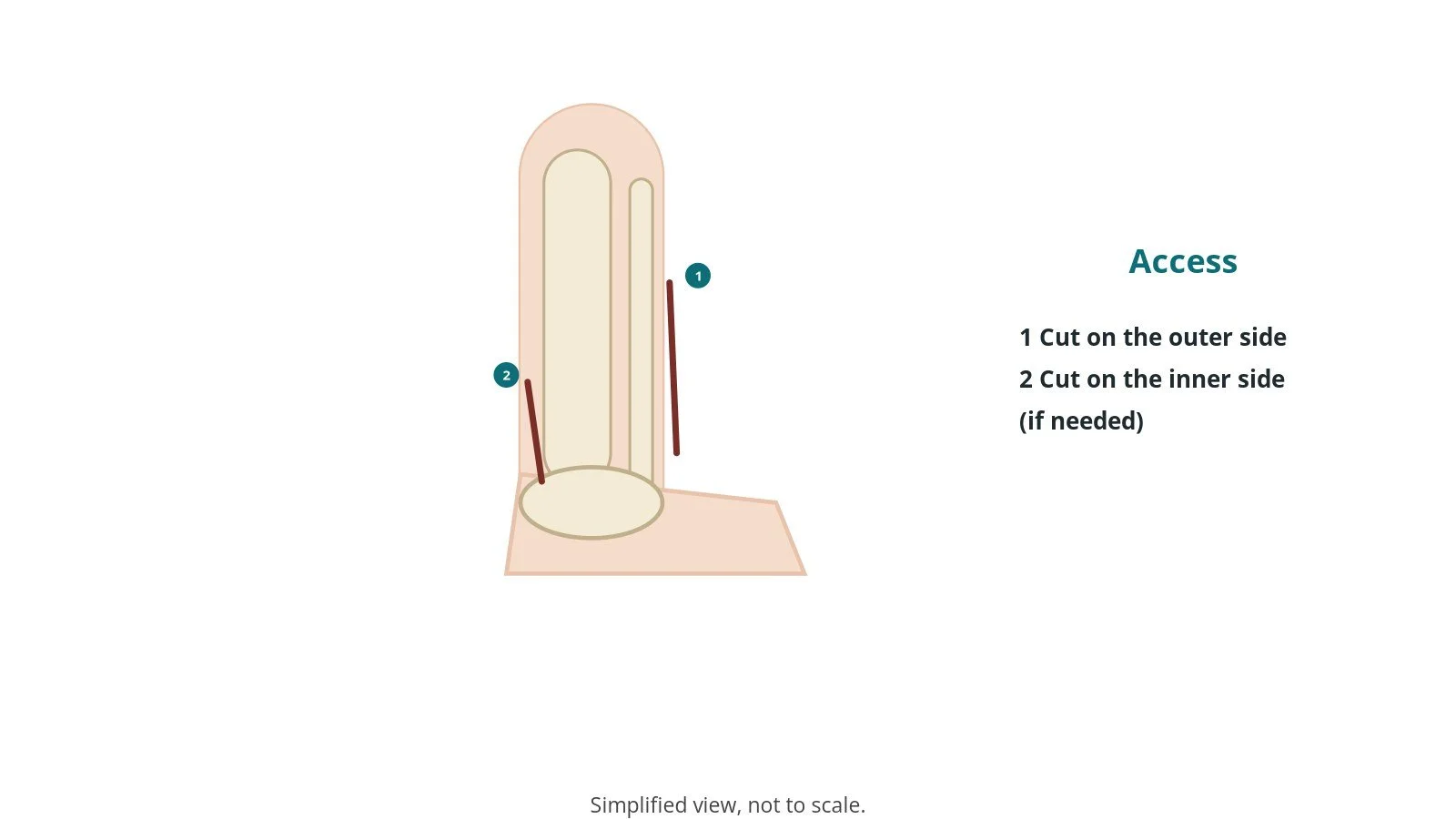

2. Access
The patient lies on their back (or side) with a tourniquet on the thigh. Cuts are made over the outer (fibula) and/or inner (tibia) side of the ankle.

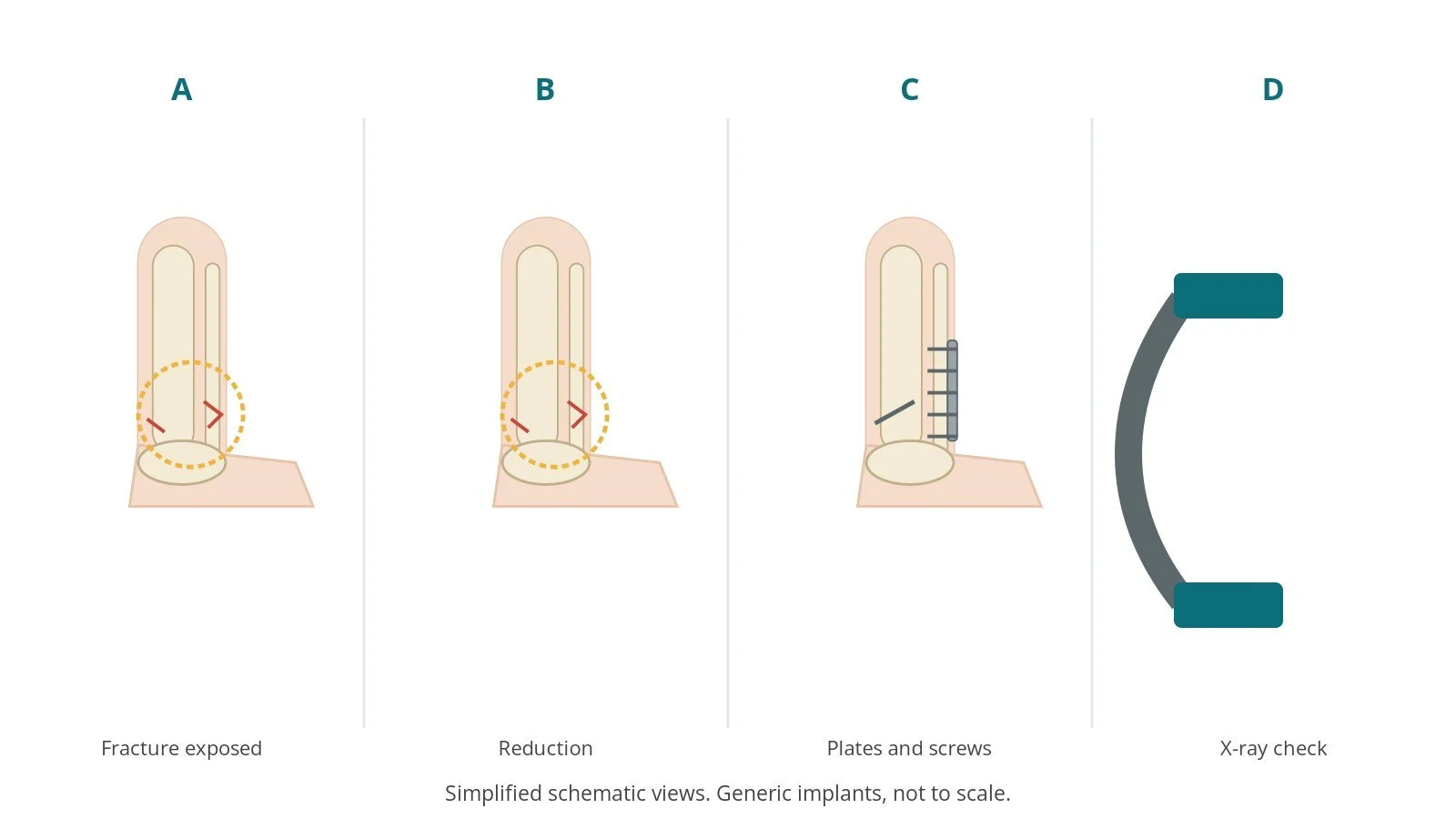

3. Fixing the fracture
- A. Fracture exposed. The broken bone ends are exposed and cleaned.
- B. Reduction. The bones are put back in line and held with clamps or wires.
- C. Plates and screws. A plate and screws are fixed, sizes per device and operator.
- D. X-ray check. X-ray confirms the bones and ankle joint are lined up.
4. Finishing
The wounds are closed carefully to protect the skin. A backslab or boot is applied. Final counts are confirmed, implant details recorded, and the patient goes to recovery with a full handover, including limb checks (circulation and nerves), as per centre protocol.

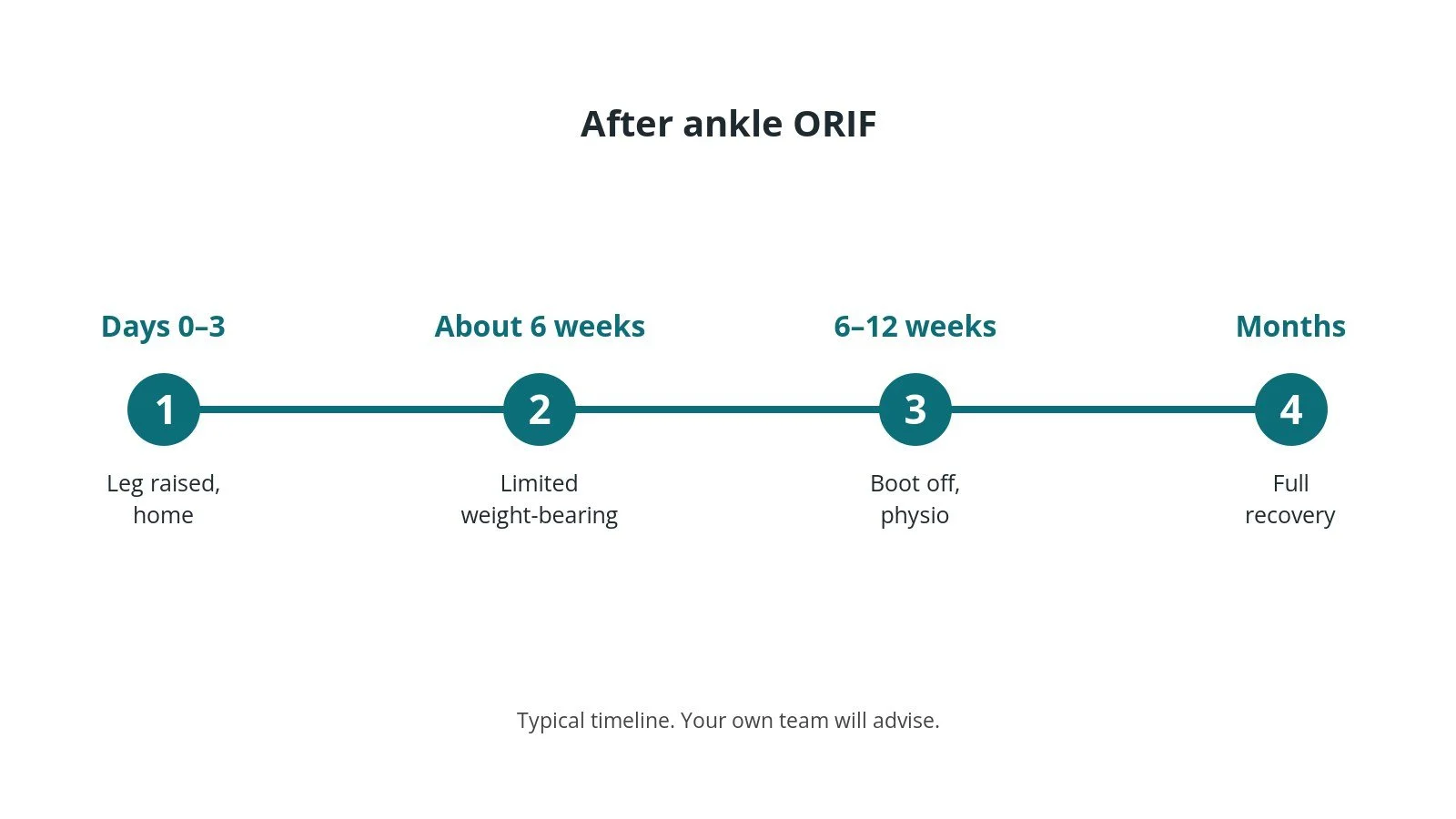

Recovery and aftercare
- First days: keep the leg raised to reduce swelling.
- Going home: often 1–3 days.
- Weight-bearing: often limited for about 6 weeks, as advised.
- Cast or boot: for several weeks.
- Clot prevention: as per centre protocol.
- Follow-up: wound check and X-rays at clinic.
Call 999 if you have chest pain or sudden breathlessness. Contact your team if you have increasing pain, a cold, numb or very swollen limb, calf pain, fever, or a wound that becomes red, hot or leaky.
Risks and complications
Your team will explain the risks that apply to you. Possible problems include:
- wound healing problems or infection
- stiffness and swelling
- irritation from the metalwork, sometimes needing removal
- nerve irritation causing numbness
- the bones not healing
- arthritis in the ankle later
- blood clots in the legs or lungs

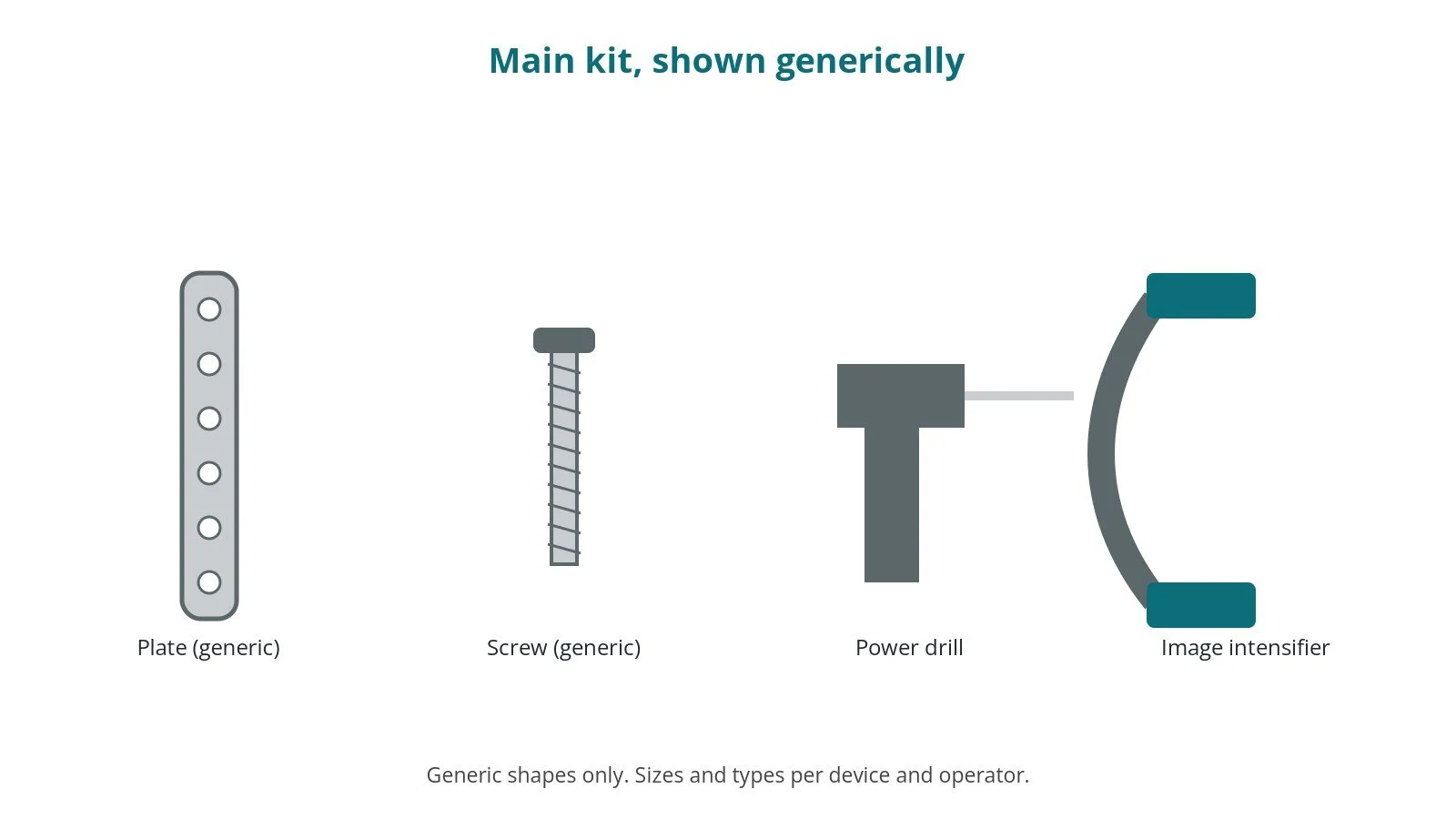

Theatre kit list (printable)
Example kit list
Every theatre has its own protocol, and sizes and doses vary.
- small fragment instrument set
- plates and screws, sizes per device and operator
- reduction clamps and wires
- power drill
- image intensifier (C-arm) and radiation protection
- tourniquet
- closure sutures, padding and backslab or boot
Procedural steps
- Team brief, WHO sign in; side marked; implant check; anaesthesia
- Supine or lateral; tourniquet; prep and drape; count
- Incision; fracture exposed
- Reduction and temporary fixation
- Plate and screws; X-ray checks
- Closure; backslab; counts; implant log; sign out and handover
First time in theatre?
đź’ˇ First-time tip
- Implant check. Read back the implant type, side and size before opening, and record it in the implant log.
- Site and side. Check the marking at sign in and again before the cut.
- Counts matter. Swabs, needles, instruments and small implant parts are counted; speak up if one is missing.
- Radiation safety. Wear lead and a dosimeter when X-ray is used, and keep your distance.
- Tourniquet time. Note when the tourniquet goes up and call out times as per centre protocol.
FAQ
Will the metal be removed?
Usually not, unless it causes problems.
When can I walk on it?
Often after about 6 weeks, as advised.
Will my ankle be normal?
Many people recover well; some have stiffness or later arthritis.
Related guides
Sources
All checked on 14 October 2026. Each page's own date is shown where it gives one.
- NICE. Fractures (non-complex): assessment and management (NG38). nice.org.uk/guidance/ng38
- NICE. Fractures (complex): assessment and management (NG37). nice.org.uk/guidance/ng37
- NHS. Broken ankle. nhs.uk/conditions/broken-ankle
- StatPearls (NCBI Bookshelf), search: ankle fracture. ncbi.nlm.nih.gov/books
- World Health Organization. Surgical Safety Checklist. who.int
Disclaimer
Education only. This page is for general education for healthcare students, theatre staff and curious readers. It isn't medical advice and doesn't replace advice from your own doctor, surgical team or local unit protocols. Equipment and medicines are described generically. No product or manufacturer is recommended. If you think someone is having a medical emergency, call 999.
Disclosure: I work in the medical device industry. This page is independent education and isn't sponsored or reviewed by any company.
All diagrams on this page are original illustrations created for rodnieoro.com.
