Distal embolic protection: a Cath Lab 101 guide
Reviewed by Rodnie Oro, cath lab charge nurse · Last reviewed: October 2026 · Education only, not medical advice
Distal protection in one minute
What it is: placing a small filter or similar device beyond a narrowing to catch debris that may break off during ballooning or stenting.
Who it is for: mainly stenting of old vein bypass grafts and carotid arteries, where loose debris is more likely.
Main risks: those of the main procedure, plus the filter filling with debris, artery spasm or injury where the filter sits.
Usually: part of a stenting procedure under local anaesthetic.
On this page: What is distal protection? · Who is it for? · When is it done? · Step by step · Recovery · Risks · Kit list · First time in the lab? · FAQ
What is distal protection?
During stenting, small pieces of plaque or clot (emboli) can break off and travel downstream, blocking small vessels.

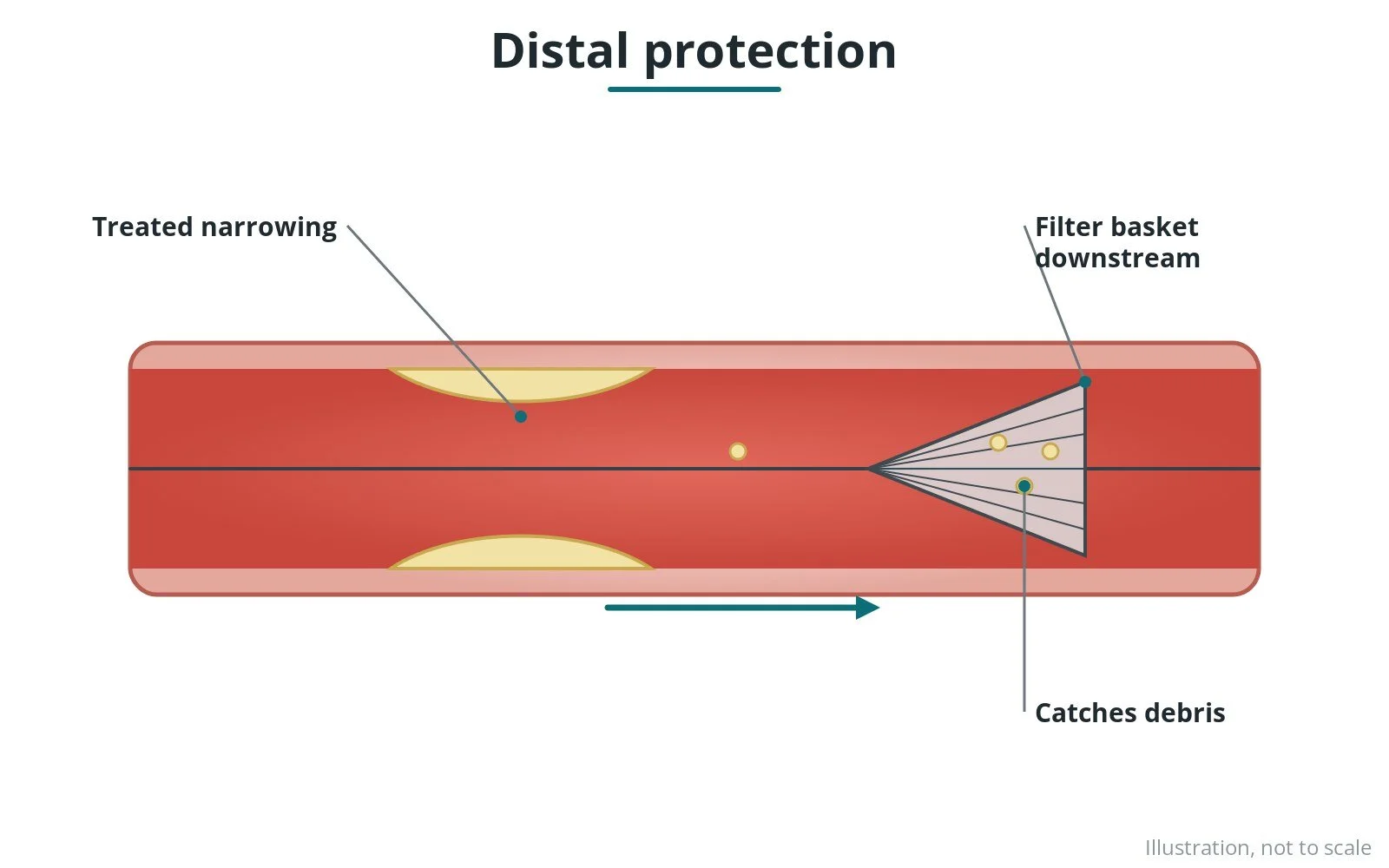

A distal protection device:
- is a small filter basket on a wire, opened beyond the narrowing like an umbrella
- lets blood through but traps debris
- is closed and removed with the debris after the stent is placed
Other designs use a balloon to block flow briefly while debris is sucked out.
New to the acronyms? See the Cath Lab Abbreviations A–Z.
Who is it for?
It is used during procedures such as:
- stenting of old vein bypass grafts
- carotid stenting
- selected other procedures with a high risk of debris
The decision is made by your heart team, who will talk through the reasons, the alternatives and the risks with you.

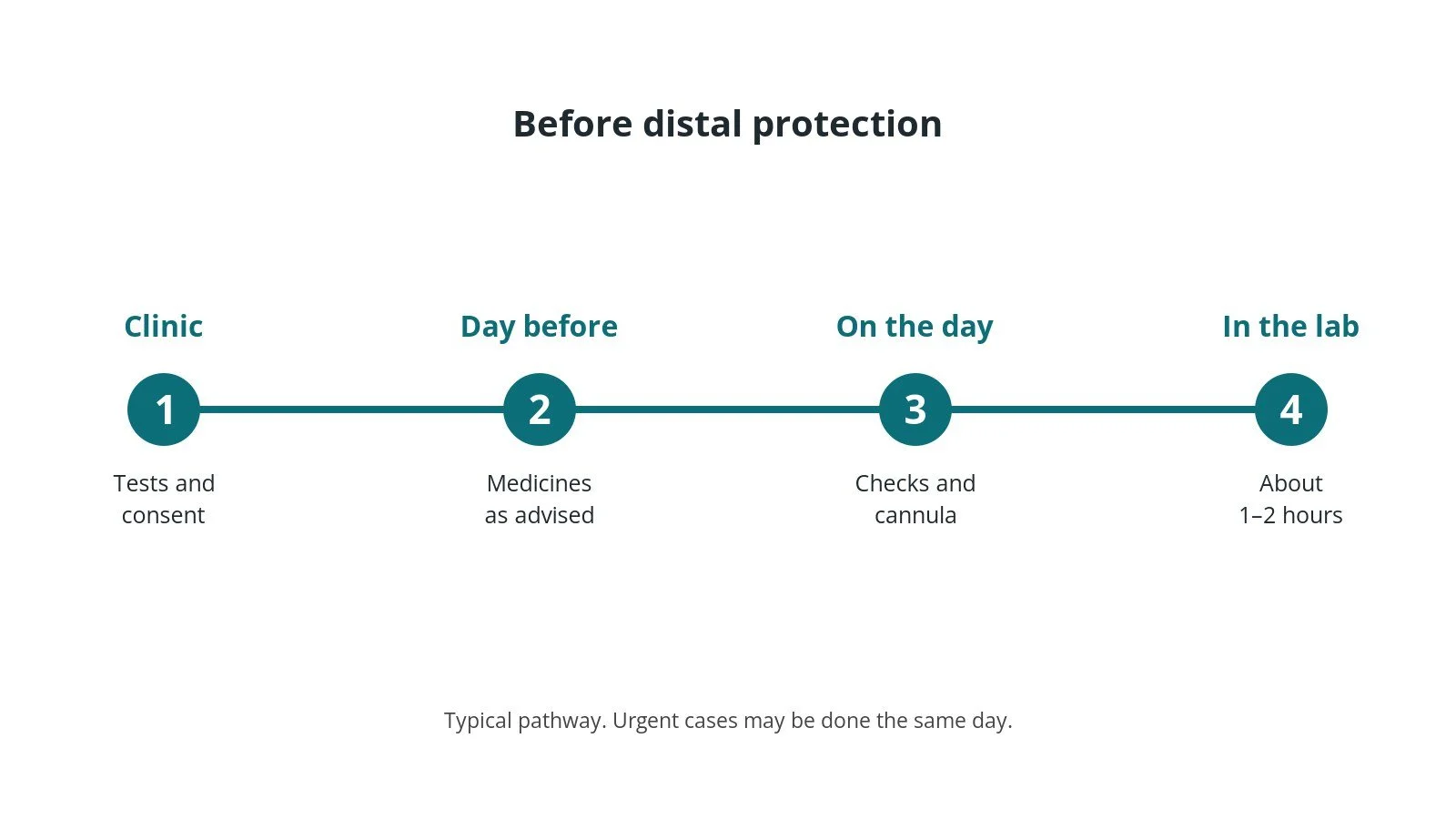

When is it done?
It can be planned in advance or done urgently. Before it, you usually have:
- blood tests, including kidney function and blood count
- an ECG, and often an echo or other scan
- a review of your medicines, especially blood thinners and diabetes medicines, as per centre protocol
- a chance to ask questions and give consent
Step by step
1. Getting ready
You lie on the X-ray table. The wrist (or groin) is numbed with local anaesthetic. ECG, blood pressure and oxygen levels are monitored. You may be given medicines to thin the blood, as per centre protocol.
2. Access

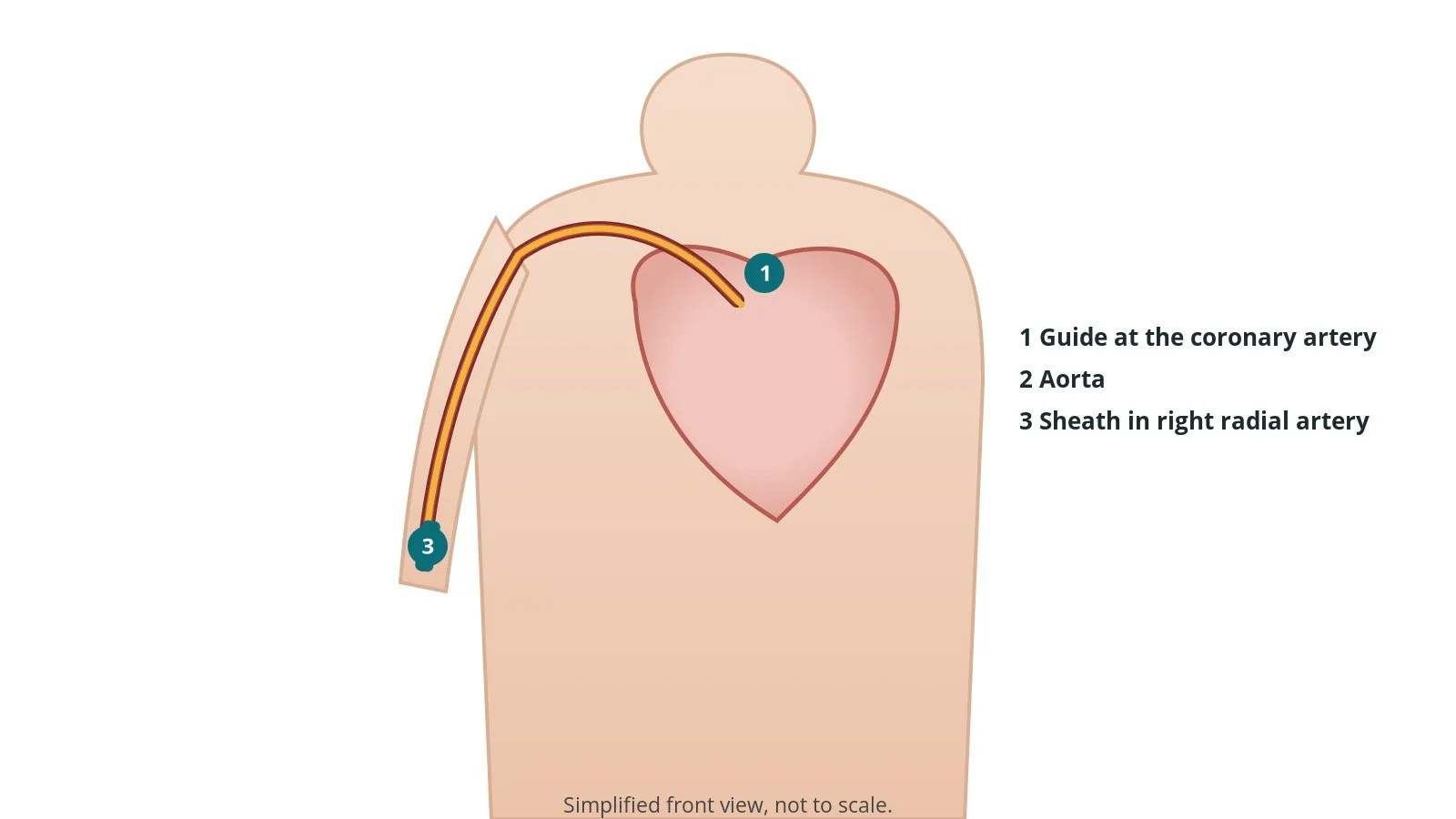

A sheath is placed in the radial artery at the wrist or the femoral artery in the groin, sizes per device and operator. A guide catheter is placed at the opening of the coronary artery and heparin is given, dose as per centre protocol. A thin guidewire is passed across the narrowing.

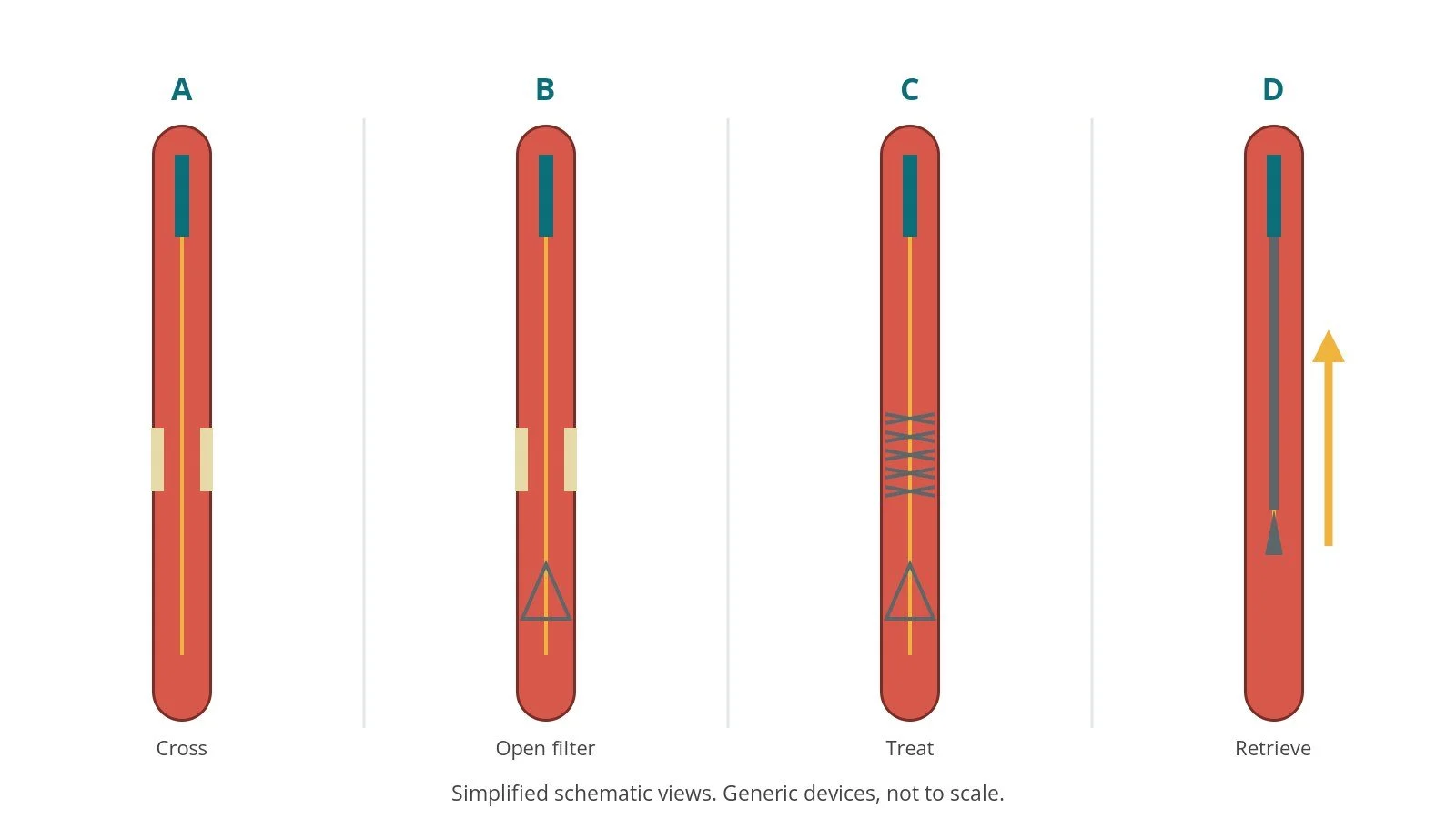

3. Protection
- A. Cross. The filter wire crosses the narrowing.
- B. Open filter. The filter opens in a straight segment beyond it.
- C. Treat. The narrowing is ballooned and stented.
- D. Retrieve. A retrieval catheter closes the filter and it is removed.
You may feel chest discomfort while a balloon or device is in the artery. Tell the team; it usually settles quickly.
4. Finishing
A final angiogram checks the result. The sheath is removed and the wrist closed with a pressure band, or the groin with pressure or a closure device, per device and operator.

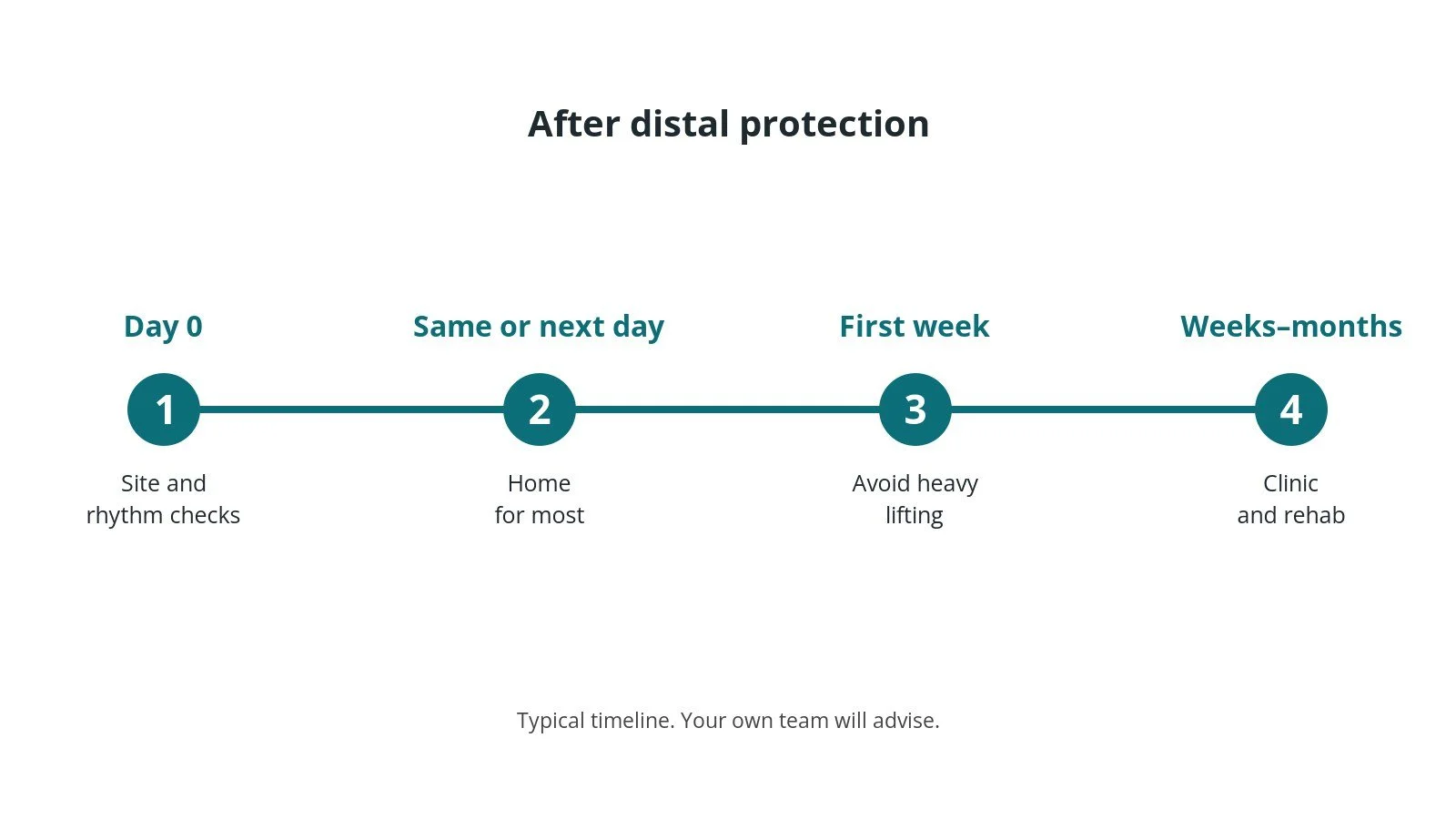

Recovery and aftercare
- First hours: checks of the wrist or groin, heart rhythm and blood pressure, as per centre protocol.
- Going home: often the same or next day.
- Medicines: take your blood thinners exactly as prescribed; don't stop them without talking to your heart team.
- Activity: avoid heavy lifting with the treated arm or leg for a few days.
- Driving: the DVLA rules depend on your condition; ask your team.
- Follow-up: clinic review and cardiac rehabilitation where offered.
Call 999 if you have chest pain, breathlessness, fainting, signs of a stroke, or heavy bleeding or swelling at the access site.
Risks and complications
Your team will explain the risks that apply to you. Possible problems include:
- bruising or bleeding at the wrist or groin
- damage to the treated artery, such as a tear (dissection) or, rarely, a perforation
- debris or clot travelling downstream, causing chest pain or a small heart attack
- heart rhythm problems
- kidney effects from contrast dye
- heart attack, emergency surgery, stroke or death (rare)

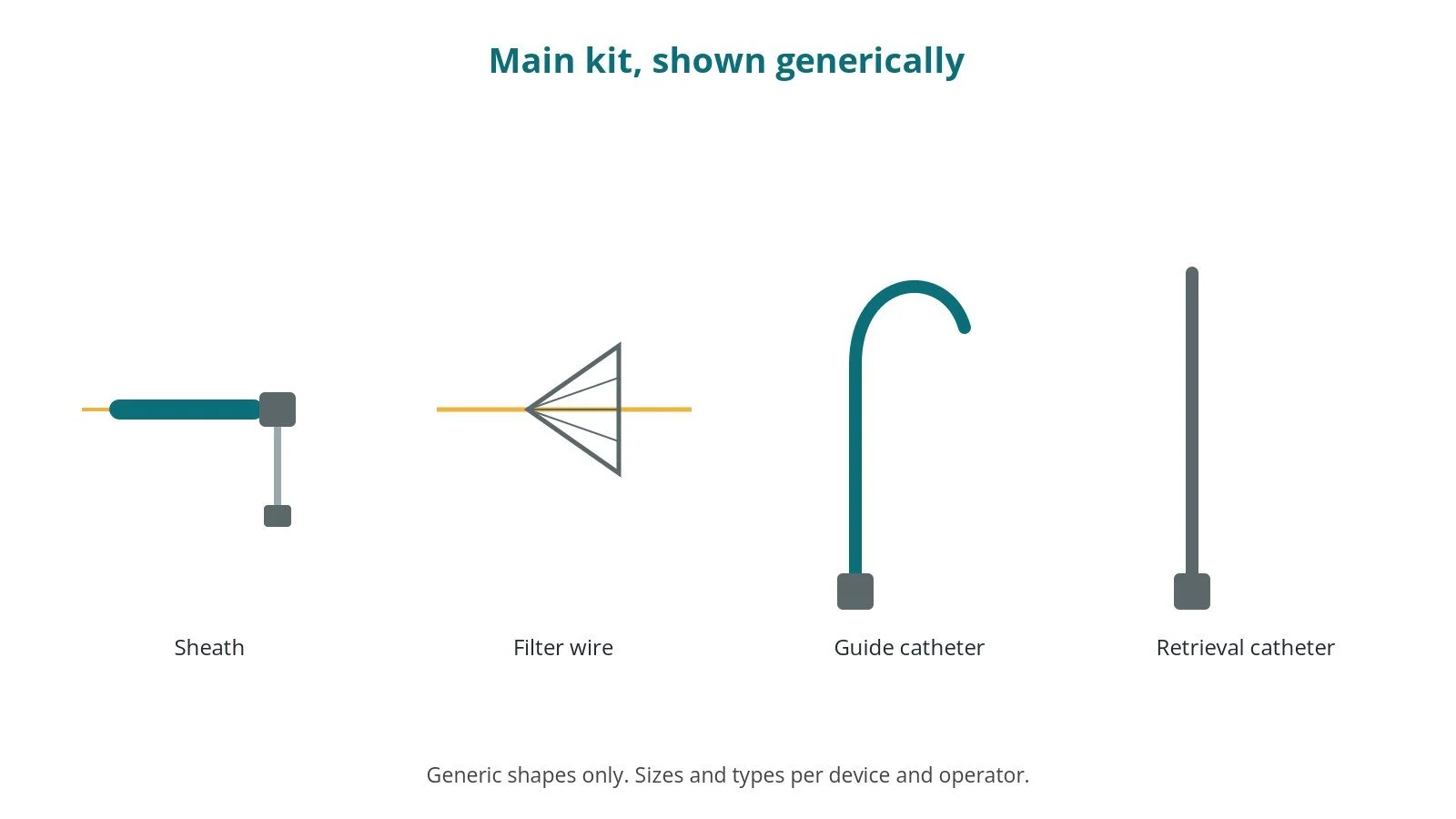

Cath lab kit list (printable)
Barts example kit list
An example from one UK centre, written generically. Every lab has its own protocol, and sizes and doses vary.
- radial or femoral arterial sheath, size per device and operator
- guide catheter, shape per operator
- coronary guidewire(s), per operator
- PCI kit (Y-connector, inflation device and accessories)
- heparin, as per centre protocol
- filter protection device and retrieval catheter, size per device and operator
- stents and balloons, sizes per device and operator
Procedural steps (Barts example)
- Access; guide; angiogram
- Filter wire across; filter deployed beyond the lesion
- Balloon and stent over the filter wire
- Check flow
- Retrieval catheter; filter removed; inspect debris
First time in the cath lab?
đź’ˇ First-time tip
- Landing zone. The filter needs a straight, healthy segment.
- Watch flow. Slow flow may mean a full filter.
- Retrieval ready. Have the retrieval catheter open before stenting.
- Show the debris. Inspect the filter after removal.
FAQ
Is the filter left in?
No. It is removed at the end.
Is it used in every stent?
No. Mainly in grafts and carotid arteries.
Will I feel it?
Usually not.
Related Cath Lab 101 guides
- PCI (coronary angioplasty and stents)
- Coronary angiogram
- Chronic total occlusion (CTO PCI)
- Cath Lab Abbreviations A–Z
Sources
All checked on 10 October 2026. Each page's own date is shown where it gives one.
- Knuuti J, et al. 2019 ESC Guidelines for the diagnosis and management of chronic coronary syndromes. Eur Heart J 2020;41(3):407–477. PubMed 31504439
- StatPearls (NCBI Bookshelf), search: embolic protection device. ncbi.nlm.nih.gov/books
Disclaimer
Education only. This page is for general education for healthcare students, cath lab staff and curious readers. It isn't medical advice and doesn't replace advice from your own doctor, heart team or local unit protocols. Equipment and medicines are described generically. No product or manufacturer is recommended. If you think someone is having a heart emergency, call 999.
Disclosure: I work for a company that makes a device used in this procedure. This page is independent education, isn't sponsored or reviewed by any company, and doesn't recommend any product.
All diagrams on this page are original illustrations created for rodnieoro.com.
